♦ Mobile Weighbridge ♦

FOUNDATIONLESS MOVABLE WEIGHBRIDGE :

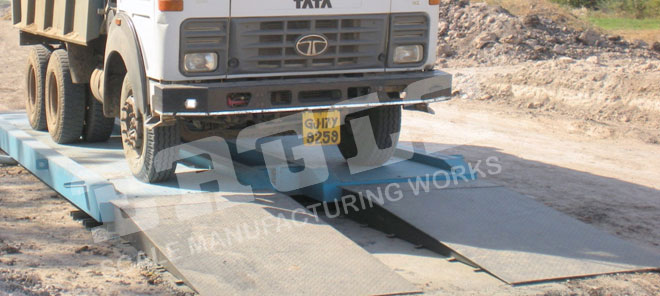

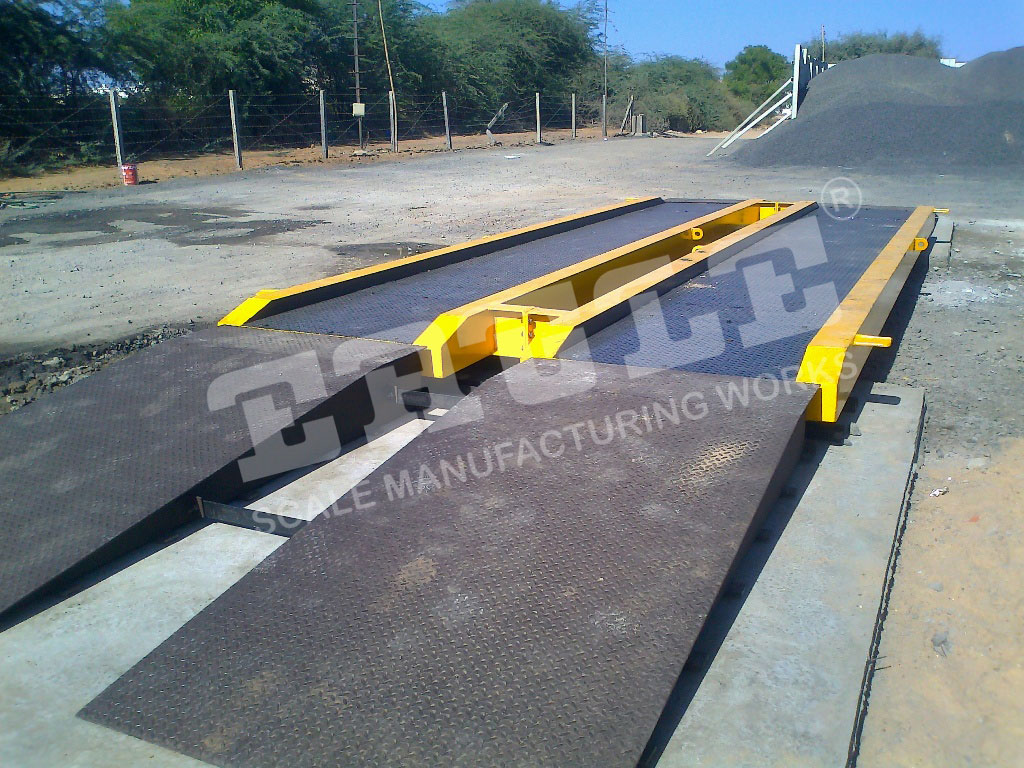

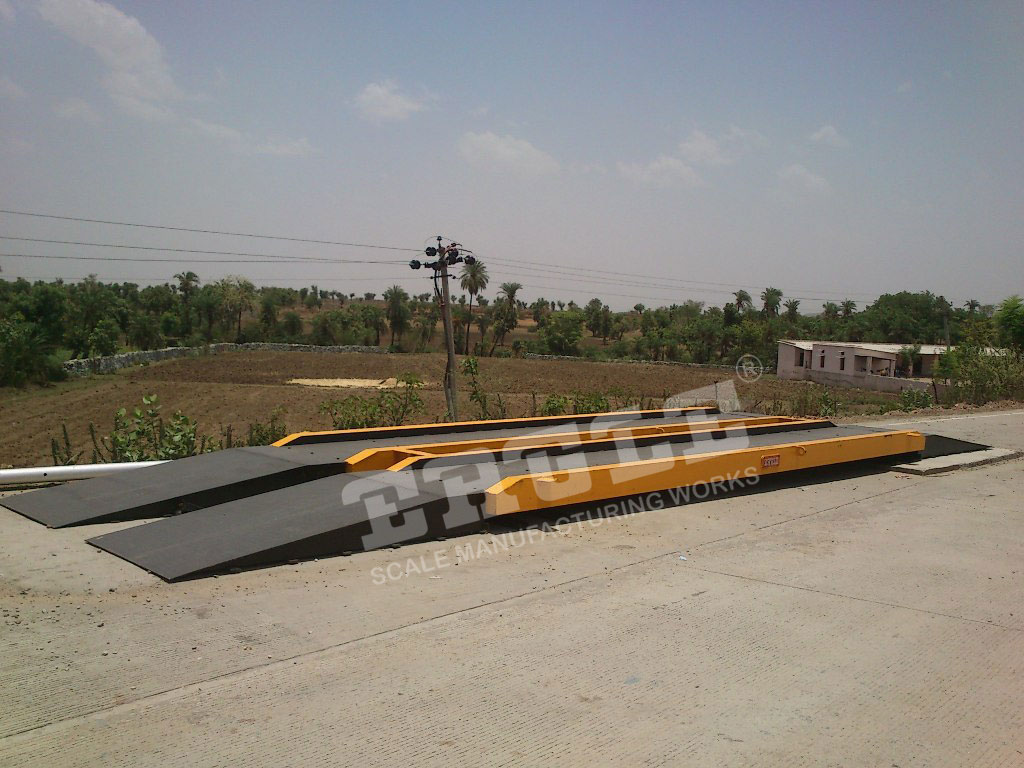

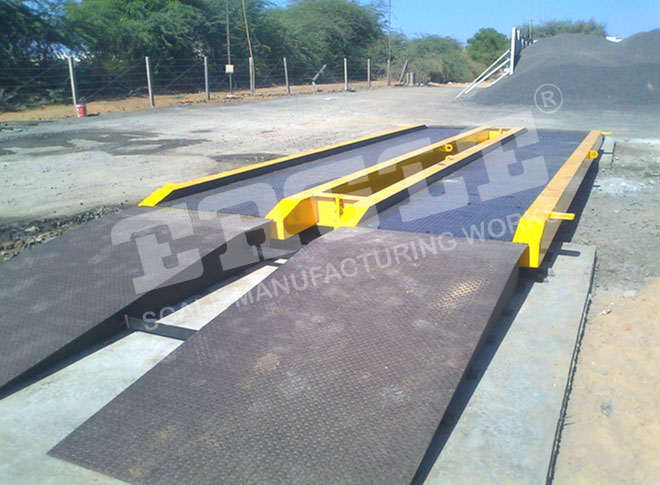

Mobile weighbridge needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation.

These are steel fabricated modular platform supplied complete with ramps. The top plate is steel checkered. Machine comes with the bottom frame which is steel fabricated. The load cells are installed between the bottom frame and the top frame. The bottom frame substitutes the traditional foundation. The bottom frame just needs a smooth hard surface on which it rests. Mobile Weighbridges We offer clients a wide range of mobile weighbridges. These are fully certified, totally mobile and self-contained unit that can be set up at virtually any location within minutes.

BENEFITS :

Modular Design- Machine supplied complete with platform, bottom frame and ramps
Needs no foundation
Installation in hours
Can be shifted to another site easily
Keeps vigil on costly materials
Significantly saves time & construction costs
Most suited for temporary sites

Further its innovative designs also allow it to be towed by truck-tractor unit, or by tractor using a front trolley, thus reducing the involved transport costs. The products offered under this category include:

movable weighbridge, Nigeria, Namibia, Zimbabwe, Morocco, Mauritius

♦ Mobile Weighbridge ♦

foundationless, Nigeria, Namibia, Zimbabwe, Morocco, Mauritius

♦ Mobile Weighbridge ♦

South Africa, Kenya, Egypt, Tanzania, Congo, libya, Cameroon

♦ Mobile Weighbridge ♦

FEATURES: :

Steel fabricated modular platform support O.I.M.L. Standards/B.I.S. Standards or other Standards laid down by department of Mass metrology Govt. Of India including IP 68 Protection standards. Ted by ramps
Anti skid duly ribbed top plate
Steel fabricated bottom frame based on evenly placed joists to form grid network as Well as support to platform beneath

APPLICATIONS :
