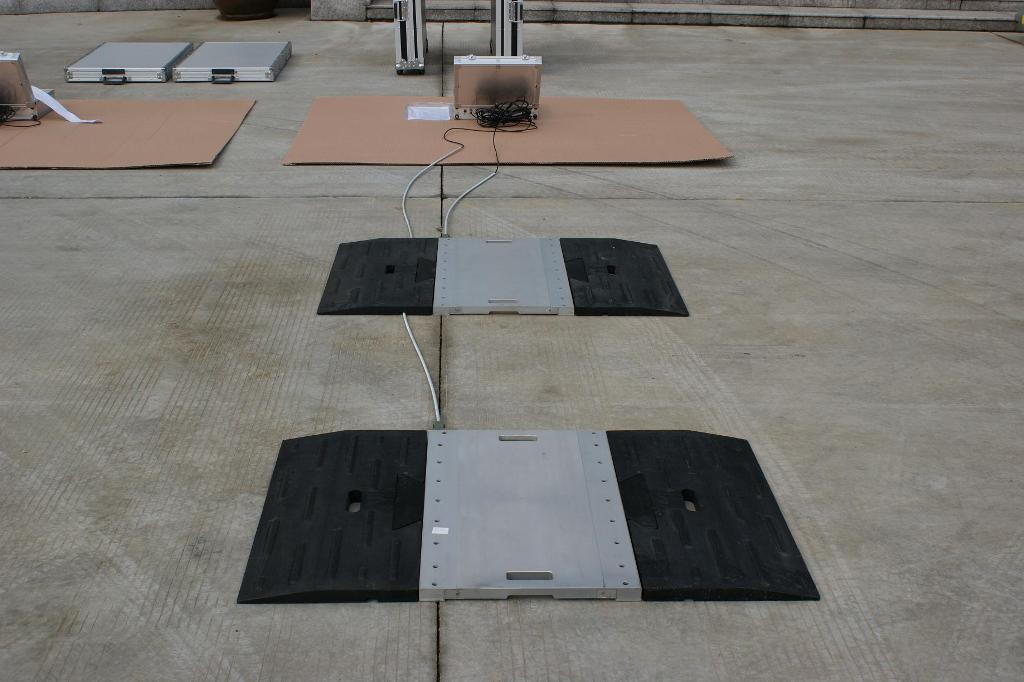

Axle weighbridges are a very good choice for Mines and Factories, where installations are required to be quick. Shifting axle weighbridge can be done quickly and needs only a small pickup truck for transportation.

Axle weigh bridges are very cost effective solution, the user benefits from the low equipment cost, low cost of civil work & installation and hence rapid recovery on investment.

Civil work takes only 3 to 4 days time and the installation can be done in just one day. With its many advantages and cost benefits, axle weighbridge is highly rewarding solution with no compromise.


Feature :

• Quick delivery and installation
• Low Cost
• Very low cost on civil work
• Installation in one day
• Powerful software (AXSOFT) which gives total control and accountability
• IP-68 protection for load cells
• System fully protected from lightening
• Rugged instrumentation to give seamless performance
• Capacity up to 60 Ton

• Rated capacity: up to 20 ton per pad @ 20 lb graduations
• Material: High strength aluminum alloy
• Static Accuracy: 0.25% full scale or better
• Dynamic Accuracy: +/- 1% of full scale with leveling track (See Weigh in Motion)
• Dynamic Accuracy: +/- 3% of full scale without leveling track
• Overload Capacity: 200% full scale
• Input/output Resistance: 560 ohms +/- 50 ohms
• Stability: 0.5% full scale/year
• Ground level Requirement: <5mm within 0-4m
• Weight: 52 lbs including ramps, 42 lbs without ramps
• Operating Temperature range: -10 to +55 deg C
• Output: 0.6 to 1.0 mV/V
• Excitation: 5 to 24 VDC
